Algorithm

Norden Huang et al (1998) introduced the EMD algorithm called by himself "sifting process", to decompose some signal into several IMFs. The corresponding algorithm corresponds to the following steps :

The identification of the local extrema : this step is provided by the zeros values of the signal derivative.

Connection of the local maxima (resp. minima) in order to obtain the upper envelop (resp. lower envelop ): the connection is provide by spline cubic interpolation.

Average estimation:

Subtraction of the mean in order to obtain the IMF:

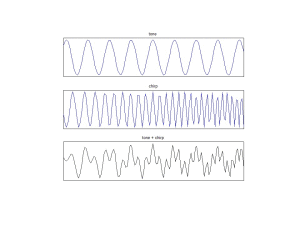

The right animation shows the principle of subtraction of the first IMF.

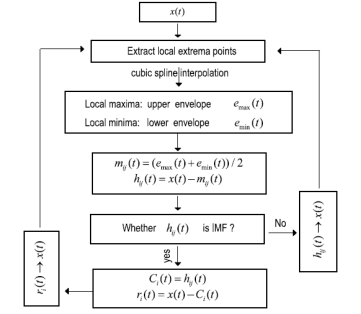

Sketch of sifting process for EMD algorithm
